Description
The Beam DriveDOCK Extreme Corded PTT is a cost-effective dock for use in-vehicle or in-cockpit and supports all Iridium Extreme® PTT handset features. The handset fits securely in the dock, which features USB and serial data connectivity, phone charging and integrated antenna, data and power connection. Built-in echo cancelling and full duplex technologies provide superior voice quality calls for any vehicle, vessel or aircraft. The weather-, vibration- and drop-resistant design ensures excellent dependability, and it is easily installed using the included universal mount.
Highlights
- Supports push-to-talk via PTT mode on the Iridium Extreme PTT handset
- Supports Iridium voice, push-to-talk, SMS, SBD and Circuit-Switched Data capable
- Supports the use of the SOS button while docked
- Allows for easy insertion/removal of the phone for use on-the-go
- Charges the Iridium Extreme PTT handset
- Two (2) year manufacturer’s warranty
Features and Tech Specs
- Slim line compact installation
- Integrated Bluetooth connectivity
- Iridium and GPS antenna connectors
- Hands-free speakerphone
- Horn alert
- Integrated USB data interface
- Built-in ringer for enhanced ring indication
- Accessory/ignition sensor
- Tracking and SOS (via the Iridium Extreme PTT handset functions)
- Built-in echo cancelling technology
- Flexible installation via universal mount
- Dimensions (L x W x D): 8.3 x 3.3 x 3″ (21.2 x 8.3 x 7.6 cm)
- Weight: 16.9 oz (480 g)
- Operating temperature range: -22°F to 158°F (-30°C to 70°C)
- Fully certified, Iridium, RoHS, CE, IEC60945, AS/EN60950
DriveDOCK Extreme Corded PTT Brochure
What’s in the Box
- DriveDOCK Extreme
- DC Power Cable/Fuse Kit
- Universal mounting bracket (RAM)
- Speaker and microphone

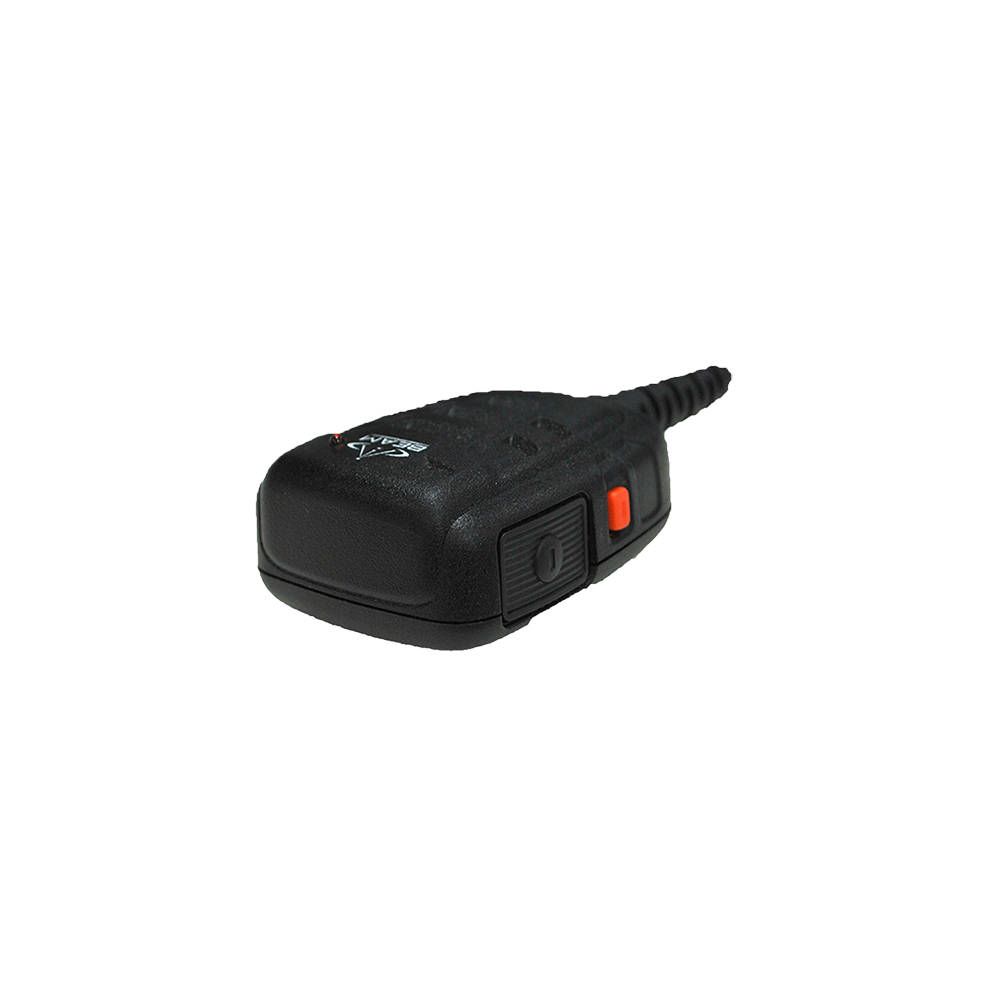

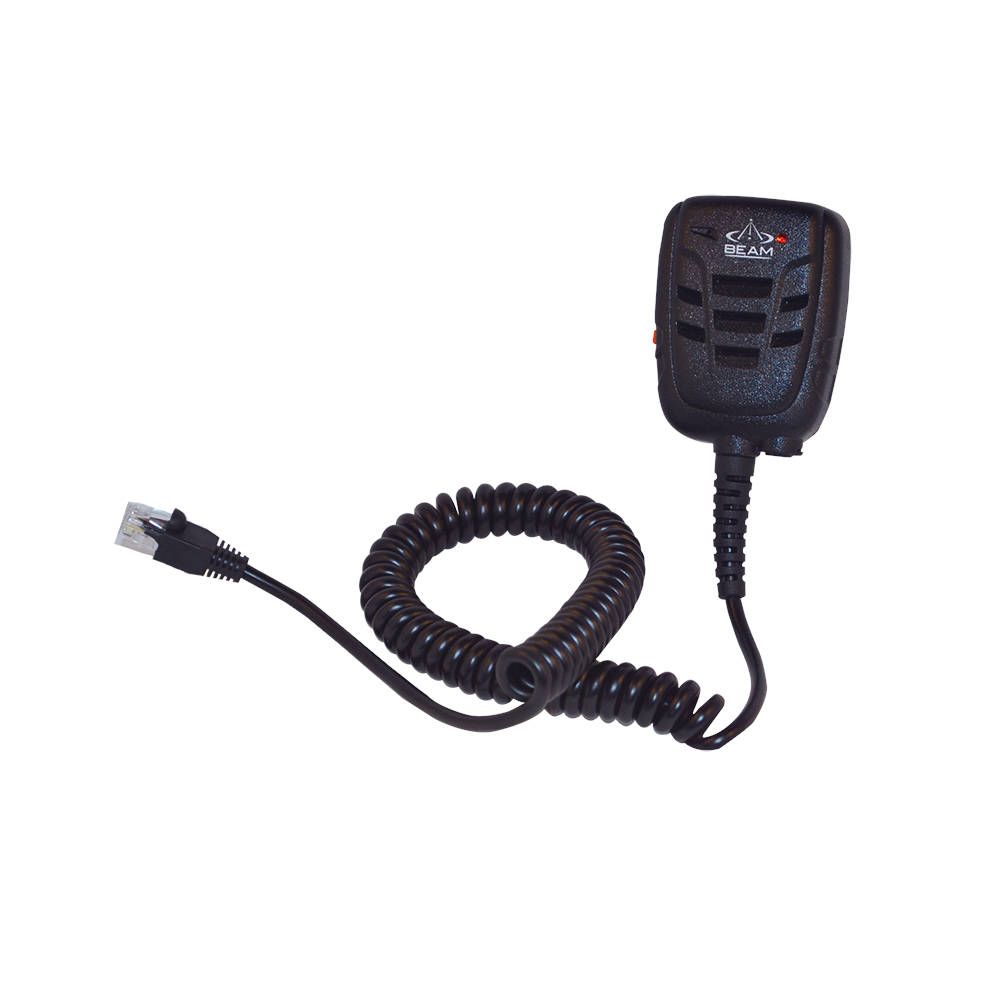

- C1 corded PTT microphone/speaker

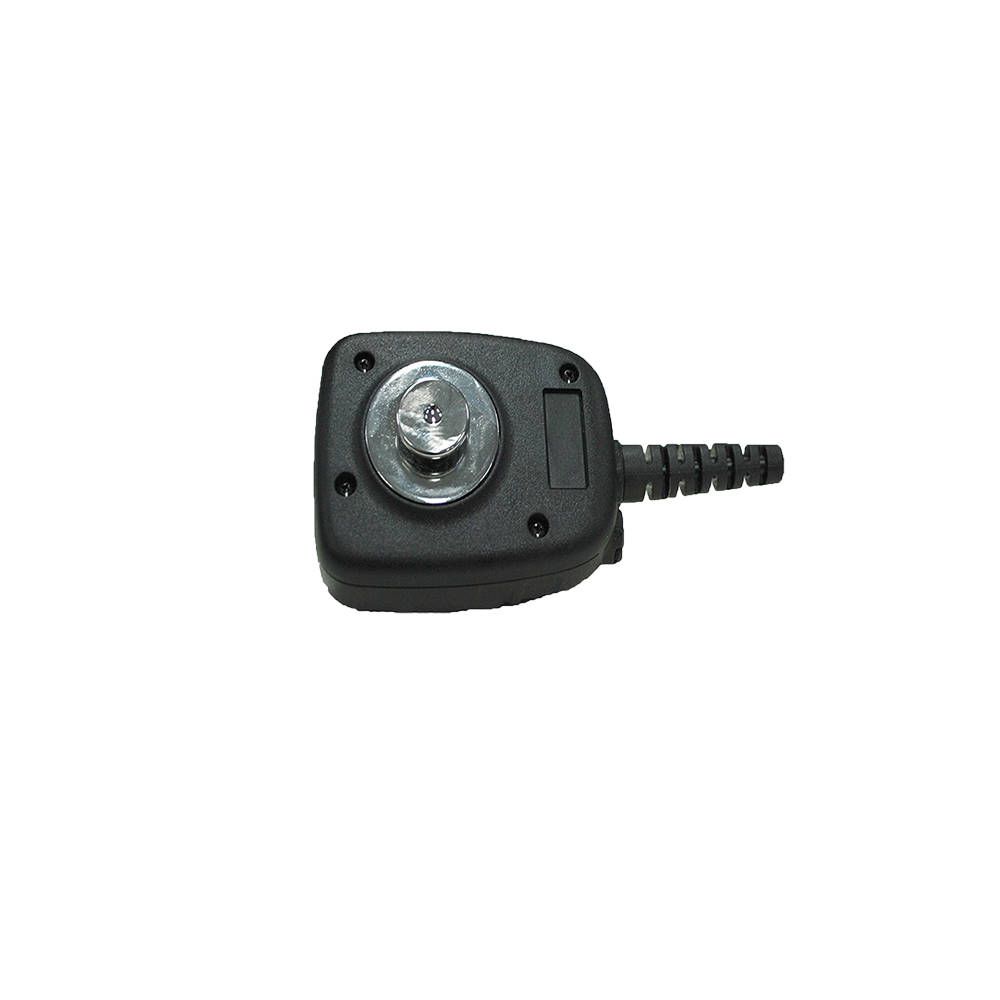

- Universal mounting bracket for C1 microphone/speaker
- User Manual
