Description

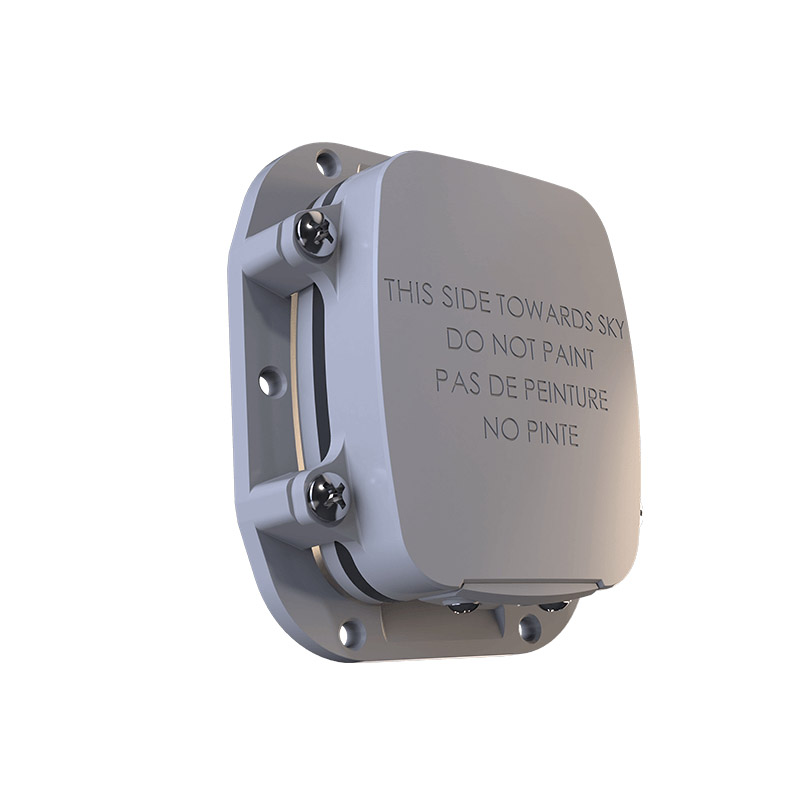

SmartOne C is a small, low-power Commercial IoT device ideal for asset tracking, lightweight input and event monitoring. The SmartOne C can be line-powered, or in the absence or interruption of external power, will automatically switch to battery back-up using 4 AAA batteries. SmartOne C utilizes motion sensors, comparative GPS positions and custom configured sensors to gather and transmit asset status information.
Key Features
Up to 12 different reporting times
Interval or 24-hour operation mode
Alternate reporting schedules
Low battery message
Quick installation
Operates on external line power, regulator cable or lithium batteries (no need to purchase expensive proprietary replacement batteries)
Automatic alerts if asset moves outside of predetermined range
Messaging cost-reduction mode for when asset remains in same location for a predetermined period of time
Hardware on/off feature: Allows the unit to initiate GPS re-centering functionality
Serial signals (TTL) accepted from external device sensors
Satellite technology: Global LEO Satellite operation using the Globalstar Satellite Network
Specifications
DIMENSIONS
2.7 x 3.25 x 1in (6.86 x 8.26 x 2.54cm) with brackets
WEIGHT
3.6 oz (102g) with 4 batteries and mounting hardware
OPERATING TEMPERATURE
-22 to 140°F (-30 to 60°C)
NOTE: The unit shall remain operational over the -40 to 185°F (-40 to 85°C) range, though may experience battery life and RF signal degradation.
LINE POWER
5V DC or 8-22V DC with regulator cable
BATTERY TYPE
4 AAA 1.5V lithium (provides 1.5+ years of life)
CERTIFICATIONS
ANATEL Certification for Brazil (pending), FCC CFR Parts 15 and 25, Industry Canada, CE Mark (European Certification) and COFETEL (pending)
STANDARDS
SAE J1455 MIL STD 810, NEMA 4X/IP68, RoHS Compliant
SATELLITE TECHNOLOGY
Global LEO Satellite operation using the Globalstar Satellite Network
