Description
The VT310 is a high performance, functionally capable vehicle tracking gateway with multiple interfaces. Featuring GNSS precise location, vehicle tracking, monitoring of driving behavior, geofencing and SmartFleet cloud platform, it delivers reliable IoT connectivity and high efficiency tracking in some of the most challenging industrial environments while being cost-effective.
Available with LTE CAT M1, CAT1 and CAT4, the VT310 offers reliable connectivity for a wide range of business.
Integrating digital I/O, two-channel CANbus ports, the VT310 facilitates the automation and informationalization of asset management and vehicle business.

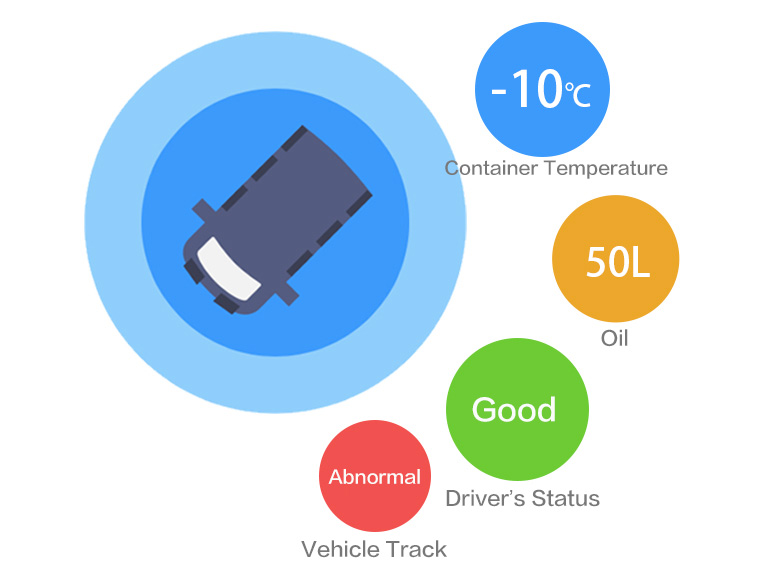

Real-time Monitoring of Vehicle Status
Integrating OBD-II, J1939 and J1708, it collects your vehicle diagnostic data in real time. The built-in GNSS delivers uninterrupted and precise vehicle location tracking, and with the SmartFleet cloud platform, offers real-time monitoring and management of your vehicles and conducts preventive maintenance.
GNSS/LBS location tracking; highly sensitive GNSS covering GPS system, offers precise location of vehicles and vehicle tracking data.
Power-saving, Durable for Power Failure
Powered by 1200mAh battery, the VT310 continues to work when power is off, delivering constant protection for challenging environments.
Featuring high industrial grade, the VT310 survives various environment challenges such as frequent changes in current and voltage and violent vibration. IP67 rated, it resists dust and water splashes, ensuring reliable and stable operation in harsh environments.
Major IoT Cloud Services Supported
The VT310 supports connection to major IoT cloud services. The user can also connect the device to their private clouds via MQTT and MQTTS.
Technical Specifications: VT310 Series
| Product Model | VT310-FS31 | VT310-FS52 | VT310-FQ58 | ||
| Network Type | Cat M1 | Cat 1 | Cat 4 | ||
| LTE Antenna | FPC built-in antenna | ||||
| Bluetooth Antenna | Ceramic built-in antenna | ||||
| GNSS | Satellite Support | GPS/GNSS/A-GNSS | |||
| Channel | 31 channels | ||||
| Sensitivity | -162 dBm, initial positioning time 32s | ||||
| Collection Sensitivity | -156 dBm (hot start)，-148 dBm (cold start) | ||||
| Positioning Accuracy | 2.5m(CEP50) | ||||
| Update Frequency | Default 1Hz, Max 10Hz | ||||
| Low Power | Continuous operation:<15mA (@3.3V single system positioning) | ||||
| Accelerometer | Acceleration | Measurement range: ±2/±4/±8/±16g | |||
| Angular velocity | Measurement range: ±125/±250/±500/±1000/±2000dps | ||||
| Battery | Capacity | 1200mAh | None | ||
| Rated Voltage | 3.7V | ||||
| Cut-off Voltage | 4.2V | ||||
| Battery Material | Lithium-ion battery | ||||
| Working Temperature | Charging: 0°~45°C; Discharging: -20~60°C | ||||
| Storage Temperature | For 1 month: -20°~45°C; For 6 months: -10°~35°C | ||||
| Environment | Temperature | -20°~60°C (connected to main power) | |||
| -20°~60°C (powered by internal battery) | |||||
| -10°~35°C (long-term storage ≤6 months with battery) | |||||
| Humidity | 95%RH @ 50°C non-condensing | ||||
| ESD | IEC 61000-4-2 (4KV test) | ||||
| Mechanical | Shell Material | Engineering plastic + engineering plastic alloy (PC+ABS) | |||
| Dimensions | Approximately 141x82x35mm | ||||
| Weight | 152g | ||||
| Vehicle-mounted Feature | I/O | 2xCANBus，1xJ1708 | |||
| Protection Rating | IP67 | ||||
| I/O | Ignition Signal | 1 channel | |||
| Digital Input | 4 channel | ||||
| Digital Output | 3 channel (Max 300mA) | ||||
| 1-Wire | 1 channel | ||||
| Analog Input | 1 channel | ||||
| Serial Port | 1 channel RS232 | ||||
| External Interface | SIM Card Slot | 2FF, Push-in slot | |||
| I/O | 26 Pin | ||||
| LED Indicator | 2 LED indicators: cellular status, GNSS status | ||||
| Certification | CE, FCC, IC, PTCRB, E-Mark | ||||
Ordering Guide
| Model | Cellular Type | Region |
| VT310-FS31 B | LTE CAT-M: B2/B4/B12/B13 | North America |
Accessories
| Cable | Order Code | Specifications |
| 26 PIN All-in-one Test Cable | SCAB000229 | The cable has P1 and P2 ends: P1 is 26PIN female, connected to
VT310; P2 is open end, which requires a 9-48V adaptor. Suitable for engineering environments and indoor tests. |
| OBD-II 7 PIN All-in-one Cable | SCAB000231 | The cable has P1, P2 and P3 ends: P1 is 26PIN female connected to
VT310; P2 is OBD-II male connected to the vehicle; P3 is ignition signal terminal connected to the ignition on/off. Suitable for heavy trucks with OBD-II vehicle diagnostic interfaces, and powers VT310 through interfaces. |
| OBD-II 26 PIN All-in-one Cable | SCAB000232 | This cable has P1, P2, P3 and P4 ends: P1 is 26PIN female
connected to VT310; P2 is OBD-II male connected to the vehicle; P3 is open end that includes I/O, RS232-1 and 1-Wire; P4 is ignition signal terminal connected to the ignition on/off. Suitable for heavy trucks with OBD-II vehicle diagnostic interfaces, and powers VT310 through interfaces. Recommended for customers who need DI, DO, AI, 1-Wire devices or vehicle-mounted controllers. |
