Description
Package contents

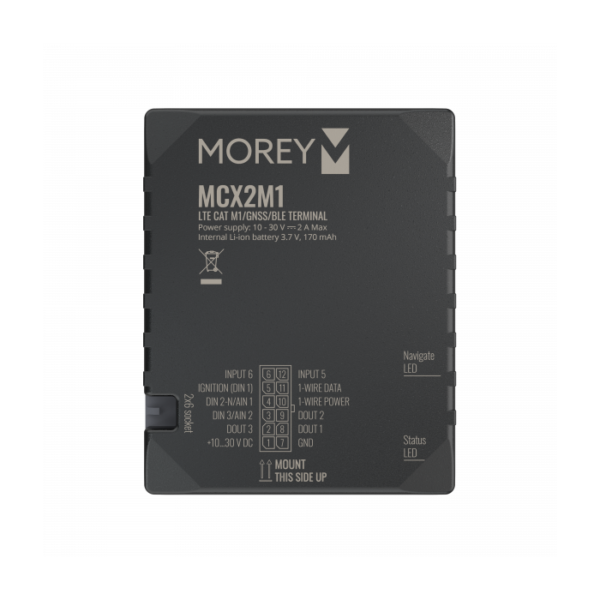

The MCX2M1 device is supplied to the customer in an anonymous cardboard box containing all the equipment that is necessary for operation. The package contains:
- MCX2M1 device;
- Input and output power supply cable with 2×6 connection pins;
- 3.7 V 170 mAh rechargeable Li-ion battery;
- GNSS antenna (internal)
Basic characteristics
GSM / GPRS / GNSS features:
- Quectel BG96 (LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B28 LTE TDD: B39 (for CAT M1 only)), TM2500 quad band module (GSM 850 / 900 / 1800 / 1900 MHz);
- GPRS Multi-Slot class 12 (Up to 240 kbps);
- SMS (text, data);
- Integrated GNSS receiver;
- Up to -165 dBm GNSS receiver sensitivity.
Hardware features:
- Built-in movement sensor;
- Built-in Bluetooth 4.0 LE;
- External High Gain GNSS antenna;
- Internal High Gain GSM antenna;
- Internal flash memory 128MB (422 400 Records);
- 170 mAh Li-ion rechargeable 3.7 V battery.
Interface features:
- Power supply: +10…+30 V;
- 3 digital inputs;
- 1 negative inputs (DIN2);
- 2 impulse inputs (DIN1, DIN2);
- 2 analog input;
- 3 digital outputs (connecting external relays, LED, buzzers etc);
- 1-Wire temperature sensor;
- 1-Wire iButton;
- LVCAN RX (INPUT 5);
- LVCAN TX (INPUT 6);
- 2 LEDs indicating device status.
Special features:
- Fast position fix;
- High Quality track even in high density urban canyon;
- Ultra small case;
- Ready for harsh environment;
- Easy to mount in limited access areas;
- Firmly fasten;
- 2 LED status indication;
- Real time tracking;
- Smart data acquisition based on:
- Time;
- Speed;
- Angle;
- Distance;
- Ignition or any other I/O event;
- Sending acquired data via GPRS;
- GPRS and SMS I/O events;
- Virtual odometer;
- Jamming detection;
- Configurable using Secured SMS Commands;
- 1x micro SIM card; 1x eSIM;
- Overvoltage protection;
| Description | Voltage | Duration |
|---|---|---|
| Normal operation | +10 … +30 V | Unlimited |
| Protection turns on, device turns off | 34 V | Unlimited |
| Maximum voltage | < 70 V | Unlimited |
| Maximum voltage impulse | 90 V | 5 ms |
Technical features
| Part Name | Physical Specification |
|---|---|
| Navigation indication | LED |
| Modem indication | LED |
| Socket | Soldered inner socket |
| USB | Micro USB socket |
| GNSS | External GNSS antenna |
| GSM | Internal GSM antenna |
| Technical Details | |
|---|---|
| 2 W max. Current consumption at 12 V (Power supply 6…30 V DC) |
GPRS: average 64.59 mA rms Nominal: average 37.77 rms GNSS sleep: average 11.1 mA Deep Sleep: average 6.2 mA Online Deep Sleep: average 6.5 mA |
| Battery charge current | Average 140 mA |
| Operating temperature (without battery) | -40..+85 °C |
| Storage temperature (without battery) | -40..+85 °C |
| Storage relative humidity | 5..95% (no condensation) |
| Device + case + battery weight | 52 g |
Dimension drawing:
Technical information about internal battery
| Internal Back-Up Battery | Battery Voltage (V) | Nominal Capacity (MAh) | Power (Wh) | Charge Temperature (°C) | Discharge Temperature (°C) | Storage Temperature (°C) |
|---|---|---|---|---|---|---|
| Li-ion rechargeable battery | 3.75～3.90 | 170 | 0.64 – 0.66 | 0 to +45 | -20 to +60 | -20 to +45 for 1 month -20 to +35 for 6 months |
Batteries are covered by 6 month warranty support.
 |
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. |
 |
Battery should not be disposed of into general household waste. Bring damaged or worn-out batteries to your local recycling center or dispose them into a battery recycle bin commonly found in supermarkets. |
Electrical characteristics
| Characteristic Description | Value | |||
|---|---|---|---|---|
| Min. | Typ. | Max. | Unit | |
| Supply Voltage: | ||||
| Supply Voltage (Recommended Operating Conditions) |
+10 | +30 | V | |
| Digital Output (Open Drain grade): | ||||
| Drain current (Digital Output OFF) | 120 | µA | ||
| Drain current (Digital Output ON, Recommended Operating Conditions) |
0.1 | 0.5 | A | |
| Static Drain-Source resistance (Digital Output ON) |
400 | 600 | mΩ | |
| Digital Input: | ||||
| Input resistance (DIN1) | 47 | kΩ | ||
| Input voltage (Recommended Operating Conditions) |
0 | Supply voltage | V | |
| Input Voltage threshold (DIN1) | 7.5 | V | ||
| Analog Input: | ||||
| Input voltage (Recommended Operating Conditions), Range 1 |
0 | +10 | V | |
| Input resistance, Range 1 | 150 | kΩ | ||
| Measurement error on 12V, Range 1 | 3 | % | ||
| Additional error on 12 V, Range 1 | 360 | mV | ||
| Measurement error on 30 V, Range 1 | 3 | % | ||
| Additional error on 30 V, Range 1 | 900 | mV | ||
| Input Voltage (Recommended Operating Conditions), Range 2 |
0 | +30 | V | |
| Input resistance, Range 2 | 150 | kΩ | ||
| Measurement error on 12V, Range 2 | 3 | % | ||
| Additional error on 12 V, Range 2 | 360 | mV | ||
| Measurement error on 30 V, Range 2 | 3 | % | ||
| Additional error on 30 V, Range 2 | 900 | mV | ||
| Output Supply Voltage 1-Wire: | ||||
| Supply voltage | +4.5 | +4.7 | V | |
| Output inner resistance | 7 | Ω | ||
| Output current (Uout > 3.0 V) | 30 | mA | ||
| Short circuit current (Uout = 0) | 75 | mA | ||
 |
Analog Input error margin can increase if temperature varies. |
Absolute maximum ratings
| Characteristic Description | Value | |||
|---|---|---|---|---|
| Min. | Typ. | Max. | Unit | |
| Supply Voltage (Absolute Maximum Ratings) |
-32 | +32 | V | |
| Drain-Source clamp threshold voltage (Absolute Maximum Ratings), (Idrain = 2 mA) |
+36 | V | ||
| Digital Input Voltage (Absolute Maximum Ratings) |
-32 | +32 | V | |
| Analog Input Voltage (Absolute Maximum Ratings) |
-32 | +32 | V | |
